| Place of Origin: | CHINA |
| Brand Name: | OCEAN |
| Certification: | ISO9001 |
| Model Number: | YZYX95(10) / YZYX110X / YZYX120X |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | USD 2100 + |
| Packaging Details: | plastic bag, wooden box |
| Delivery Time: | 1-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 units per month |
| Material: | CS, SS | Color: | Customized |
|---|---|---|---|
| Core Components: | Screw Worms, Screw Bolt, Feeding Machine, Motor | Power: | 380V, 50Hz |
| High Light: | 250KG/H Screw Oil Press Machine,225 KG/H Screw Oil Press Machine,250KG/H screw oil expeller |
||

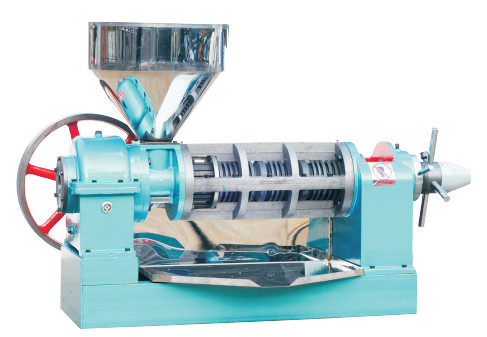

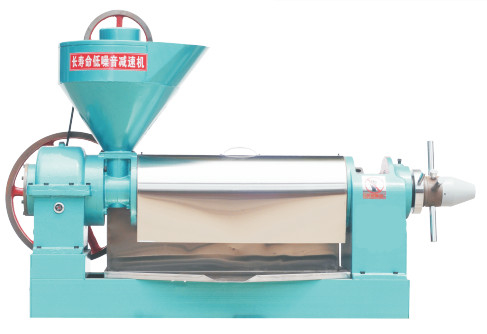

Low Noise And Long Life Hypoid Gear Transmission Series 1
Screw Oil Press Machine
Model: YZYX95(10) / YZYX110X / YZYX120X
Introduction:
This series is the latest domestic medium-sized oil press independently researched and developed by our company. It inherits the advantages of various screw presses. The transmission mechanism adopts hypoid gear transmission, which has strong bearing capacity, high efficiency, stable operation and extremely low noise. The gear has a long service life.
Capacity: 150-170KG/H / 225-250KG/H / 300KG/H
Materials:CS SS
Power: 380V, 50Hz
Technical Parameter:
| Model | YZYX95(10) | YZYX110X | YZYX120X |
| Screw shaft speed (r/min) | 32-42 | ||
| Production capacity | 150-170KG/H | 225-250KG/H | 300KG/H |
| Dry cake residual oil rate (%) | ≤ 7.8 | ≤ 7.6 | |
| Equipped with power (KW) | 11 (6-level motor) | 15 (6-level motor) | 15 (6-level motor) |
| Dimensions (L*W*H) | 1710*750*1450 | 1890*750*1450 | 1890*750*1450 |
After-sale Services: Online Video / Engineering Offline Guide
