| Place of Origin: | CHINA |
| Brand Name: | OCEAN |
| Certification: | ISO9001 |
| Model Number: | YZYX95(10)W / YZYX110W / YZYX120W / YZYX125W / YZYX135W |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | plastic bag, wooden box |
| Delivery Time: | 1-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 units per month |
| Material: | CS, SS | Capacity: | 150-170KG/H / 225-250KG/H / 300KG/H / 350KG/H / 400KG/H |
|---|---|---|---|
| Core Components: | Oil Press Machine, Motor, Motor Frame, V-belt And Belt Guard. | After-sale Services: | Online Video / Engineering Offline Guide |
| High Light: | Electric Heating Screw Oil Press Machine,170KG/H Screw Oil Press Machine,150KG/H Screw Oil Press Machine |
||

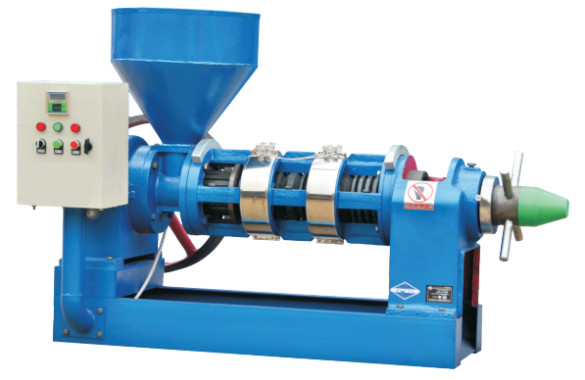

Combined Electric Heating Screw Oil Press Machine
Model: YZYX95(10)W / YZYX110W / YZYX120W / YZYX125W / YZYX135W
Introduction:
The series electric heating screw oil press has two functions: electric heating and oil pressing. Electric heating has three modes: simultaneous internal and external heating, separate internal heating or separate external heating. It has the function of automatically preheating the fryer before pressing and automatically controlling the pressing temperature during pressing. If production is interrupted, the press chamber can be automatically insulated.
Capacity: 150-170KG/H / 225-250KG/H / 300KG/H / 350KG/H / 400KG/H
Materials:CS SS
Power: 380V, 50Hz
Technical Parameter:
| Model | YZYX95(10)W | YZYX110W | YZYX120W | YZYX125W | YZYX135W |
| Screw shaft speed (r/min) | 32-42 | ||||
| Production capacity | 150-170KG/H | 225-250KG/H | 300KG/H | 350KG/H | 400KG/H |
| Dry cake residual oil rate (%) | ≤ 7.6 | ||||
| Equipped with power (KW) | 11 (4-level motor) | 11 (4-level motor) | 15 (4-level motor) | 15 (4-level motor) | 18.5 (4-level motor) |
| Dimensions (L*W*H) | 1710*750*1450 | 1890*750*1450 | 1890*750*1450 | 2100*800*1450 | 2100*800*1450 |
After-sale Services: Online Video / Engineering Offline Guide
