| Place of Origin: | CHINA |
| Brand Name: | OCEAN |
| Certification: | ISO9001 |
| Model Number: | YZYX95(10) / YZYX110X / YZYX120X |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | plastic bag, wooden box |
| Delivery Time: | 1-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 units per month |
| Material: | CS, SS | Capacity: | 150-170KG/H / 225-250KG/H / 300KG/H |
|---|---|---|---|
| Core Components: | Oil Press Machine, Motor, Motor Frame, V-belt And Belt Guard. | After-sale Services: | Online Video / Engineering Offline Guide |
| High Light: | Helical Gear Screw Oil Press Machine,Medium Sized Screw Oil Press Machine,Helical Gear oil extraction machine |
||

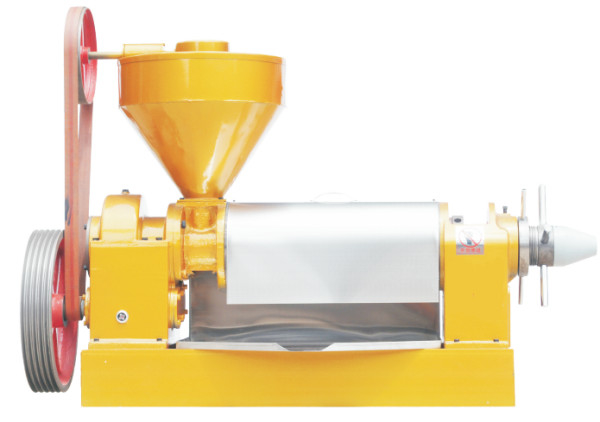

Helical Gear Drive Screw Oil Press Series Screw Oil Press Machine
Screw Oil Press Machine
Model: YZYX95(10) / YZYX110X / YZYX120X
Introduction:
The helical gear transmission series oil press is our company's traditional high-quality medium-sized oil press. The transmission mechanism is made of high-quality alloy structural steel and forged and formed. The tooth surface is high-frequency quenched, which significantly improves the load-bearing capacity and has a long gear life.
Capacity: 150-170KG/H / 225-250KG/H / 300KG/H
Materials:CS SS
Power: 380V, 50Hz
Technical Parameter:
| Model | YZYX95(10) | YZYX110X | YZYX120X |
| Screw shaft speed (r/min) | 32-42 | ||
| Production capacity | 150-170KG/H | 225-250KG/H | 300KG/H |
| Dry cake residual oil rate (%) | ≤ 7.8 | ≤ 7.6 | |
| Equipped with power (KW) | 11 (6-level motor) | 15 (6-level motor) | 15 (6-level motor) |
| Dimensions (L*W*H) | 1710*750*1450 | 1890*750*1450 | 1890*750*1450 |
After-sale Services: Online Video / Engineering Offline Guide
