| Place of Origin: | CHINA |
| Brand Name: | OCEAN |
| Certification: | ISO9001 |
| Model Number: | YZYX160 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | plastic bag, wooden box |
| Delivery Time: | 1-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 units per month |
| Material: | CS, SS | Capacity: | 600-700KG/H |
|---|---|---|---|
| Core Components: | Oil Press Machine, Motor, Motor Frame, V-belt And Belt Guard. | After-sale Services: | Online Video / Engineering Offline Guide |
| High Light: | 700 KG/H Screw Oil Press Machine,600 KG/H Screw Oil Press Machine,700KG/H heavy duty oil press machine |
||

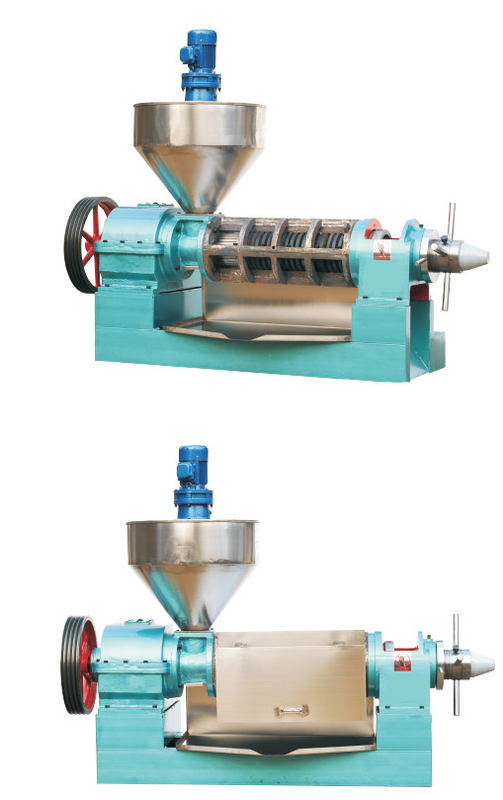

Heavy-duty Screw Oil Press Machine
Model: YZYX160
Introduction:
YZYX160 heavy-duty transmission mechanism screw oil press is the latest medium-sized independently researched and developed newest medium-sized oil press in order to meet the needs of the development of the oil processing industry. Screw oil press. The gears of the transmission mechanism are made of high-quality alloy structural steel and forged, and the tooth surface is high-frequency quenched, which significantly improves the load-bearing capacity and significantly extends the service life of the gear pair.
YZYX160 heavy-duty transmission mechanism screw oil press has beautiful appearance, stable and reliable operation, low noise, long service life, simple operation and maintenance, easy maintenance, strong adaptability, large output and high oil output rate. In particular, it can greatly reduce labor costs and further improve economic efficiency.
Capacity: 600-700KG/H
Materials:CS SS
Power: 380V, 50Hz
Technical Parameter:
| Model | YZYX160 |
| Screw shaft speed (r/min) | 32-42 |
| Production capacity | 300-350KG/H |
| Dry cake residual oil rate (%) | ≤ 7.6 |
| Equipped with power (KW) | 30 (6-level motor) |
| Dimensions (L*W*H) | 2440*800*1490 |
After-sale Services: Online Video / Engineering Offline Guide
